anti-Ankyrin B antibody [S105-13]

anti-Ankyrin B antibody [S105-13] for Western blot,Immunohistochemistry,ICC/IF and Human,Mouse,Rat

publication_link Publication1


Product Description Mouse Monoclonal antibody [S105-13] recognizes Ankyrin B
Tested Reactivity Hu, Ms, Rat
Tested Application ICC/IF, IHC, WB
Specificity Detects ~200kDa. No cross reactivity against Ankyrin-G.
Host Mouse
Clonality Monoclonal
Clone S105-13
Isotype IgG1
Target Name Ankyrin B
Antigen Species Human
Immunogen Synthetic peptide around aa. 203-496 of Human Ankyrin B
Conjugation Un-conjugated
Alternate Names Ankyrin-B; Non-erythroid ankyrin; ANK-2; Ankyrin-2; LQT4; brank-2; Brain ankyrin

Application Instructions

Application Suggestion
Tested Application Dilution
Application Note * The dilutions indicate recommended starting dilutions and the optimal dilutions or concentrations should be determined by the scientist.


Form Liquid
Purification Purification with Protein G.
Buffer PBS (pH 7.4), 0.09% Sodium azide and 50% Glycerol
Preservative 0.09% Sodium azide
Stabilizer 50% Glycerol
Concentration 1 mg/ml
Storage Instruction For continuous use, store undiluted antibody at 2-8°C for up to a week. For long-term storage, aliquot and store at -20°C. Storage in frost free freezers is not recommended. Avoid repeated freeze/thaw cycles. Suggest spin the vial prior to opening. The antibody solution should be gently mixed before use.
Note For laboratory research only, not for drug, diagnostic or other use.


Database Links

GeneID: 109676 Mouse ANK2

GeneID: 287 Human ANK2

Swiss-port # Q01484 Human Ankyrin-2

Swiss-port # Q8C8R3 Mouse Ankyrin-2

Gene Symbol ANK2
Gene Full Name ankyrin 2, neuronal
Background This gene encodes a member of the ankyrin family of proteins that link the integral membrane proteins to the underlying spectrin-actin cytoskeleton. Ankyrins play key roles in activities such as cell motility, activation, proliferation, contact and the maintenance of specialized membrane domains. Most ankyrins are typically composed of three structural domains: an amino-terminal domain containing multiple ankyrin repeats; a central region with a highly conserved spectrin binding domain; and a carboxy-terminal regulatory domain which is the least conserved and subject to variation. The protein encoded by this gene is required for targeting and stability of Na/Ca exchanger 1 in cardiomyocytes. Mutations in this gene cause long QT syndrome 4 and cardiac arrhythmia syndrome. Multiple transcript variants encoding different isoforms have been described. [provided by RefSeq, Dec 2011]
Function In skeletal muscle, required for proper localization of DMD and DCTN4 and for the formation and/or stability of a special subset of microtubules associated with costameres and neuromuscular junctions (By similarity). Attaches integral membrane proteins to cytoskeletal elements. Also binds to cytoskeletal proteins. Required for coordinate assembly of Na/Ca exchanger, Na/K ATPase and InsP3 receptor at sarcoplasmic reticulum sites in cardiomyocytes. Required for the coordinated expression of the Na/K ATPase, Na/Ca exchanger and beta-2-spectrin (SPTBN1) in the inner segment of rod photoreceptors. Required for expression and targeting of SPTBN1 in neonatal cardiomyocytes and for the regulation of neonatal cardiomyocyte contraction rate. [UniProt]
Cellular Localization Cytoplasm, Apical cell membrane, Cell membrane, cytoskeleton, M line, myofibril, Sarcomere
Calculated MW 434 kDa
PTM Phosphorylated at multiple sites by different protein kinases and each phosphorylation event regulates the protein's structure and function.

Images (2) Click the Picture to Zoom In

  • ARG22241 anti-Ankyrin B antibody [S105-13] ICC/IF image

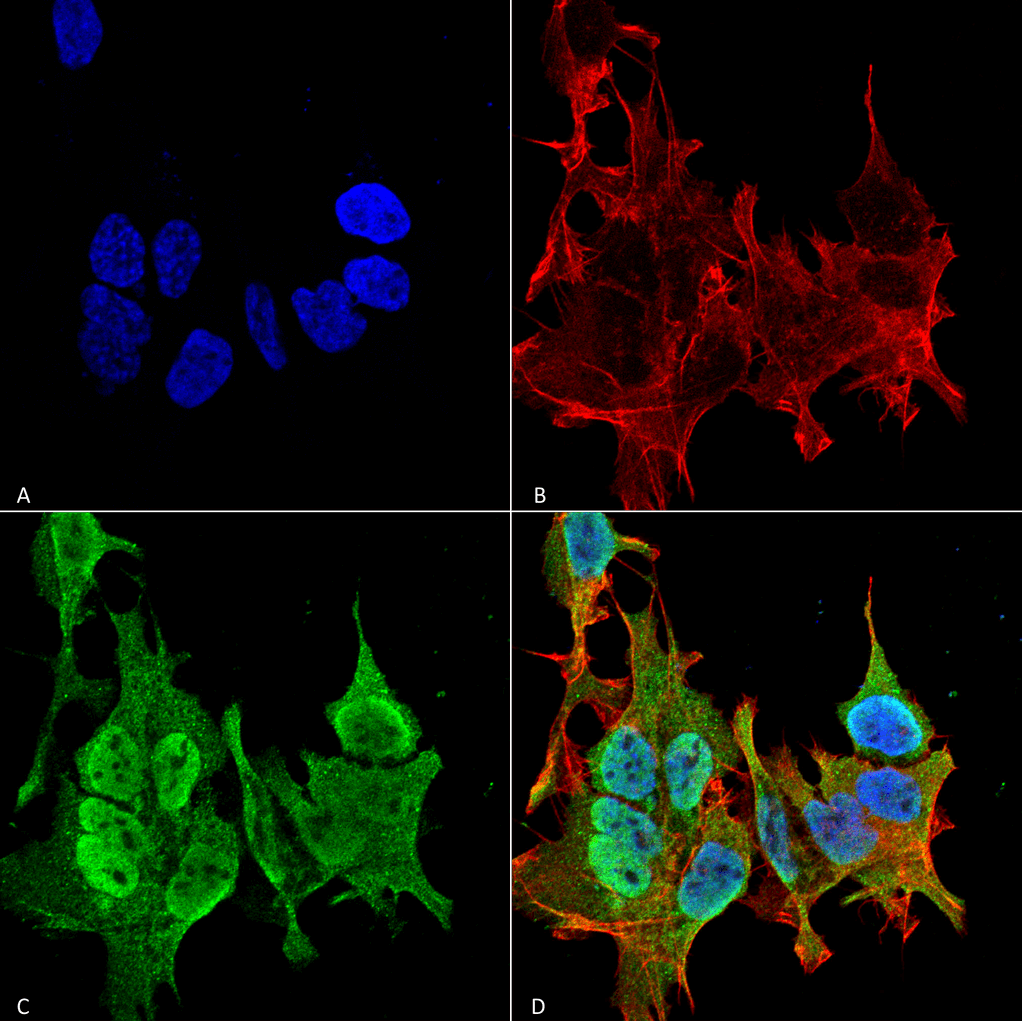

    Immunofluorescence: Human Neuroblastoma cell line SK-N-BE. Fixation: 4% Formaldehyde for 15 min at RT. Primary Antibody: ARG22241 anti-Ankyrin B antibody [S105-13] at 1:100 for 60 min at RT. Secondary Antibody: Goat anti-Mouse ATTO 488 at 1:100 for 60 min at RT. Counterstain: Phalloidin Texas Red F-Actin stain; DAPI (blue) nuclear stain. (A) DAPI (blue) nuclear stain (B) Phalloidin Texas Red F-Actin stain (C) ARG22241 anti-Ankyrin B antibody [S105-13] (D) Composite.

  • ARG22241 anti-Ankyrin B antibody [S105-13] WB image

    Western blot: Rat brain membrane lysate stained with ARG22241 anti-Ankyrin B antibody [S105-13] at 1:1000 dilution.

Specific References

Downregulation of miR-146a Contributes to Cardiac Dysfunction Induced by the Tyrosine Kinase Inhibitor Sunitinib.

WB / Mouse

Shen Li et al.
Front. Pharmacol.,  (2019)
