anti-PDPK1 phospho (Ser241) antibody

anti-PDPK1 phospho (Ser241) antibody for ICC/IF,IHC-Formalin-fixed paraffin-embedded sections,Western blot and Human,Mouse,Rat

Signaling Transduction antibody
publication_link Publication1


Product Description Rabbit Polyclonal antibody recognizes PDPK1 phospho (Ser241)
Tested Reactivity Hu, Ms, Rat
Tested Application ICC/IF, IHC-P, WB
Host Rabbit
Clonality Polyclonal
Isotype IgG
Target Name PDPK1
Antigen Species Human
Immunogen Peptide sequence around phosphorylation site of serine 241 (A-N-S(p)-F-V) derived from Human PDPK1.
Conjugation Un-conjugated
Alternate Names 3-phosphoinositide-dependent protein kinase 1; hPDK1; PDPK2P; PRO0461; PDK1; EC; PDPK2

Application Instructions

Application Suggestion
Tested Application Dilution
ICC/IF1:100 - 1:200
IHC-P1:50 - 1:100
WB1:500 - 1:1000
Application Note * The dilutions indicate recommended starting dilutions and the optimal dilutions or concentrations should be determined by the scientist.


Form Liquid
Purification Antibodies were produced by immunizing rabbits with KLH-conjugated synthetic phosphopeptide. Antibodies were purified by affinity-chromatography using epitope-specific phosphopeptide. In addition, non-phospho specific antibodies were removed by chromatogramphy using non-phosphopeptide.
Buffer PBS (without Mg2+ and Ca2+, pH 7.4), 150mM NaCl, 0.02% Sodium azide and 50% Glycerol.
Preservative 0.02% Sodium azide
Stabilizer 50% Glycerol
Concentration 1 mg/ml
Storage Instruction For continuous use, store undiluted antibody at 2-8°C for up to a week. For long-term storage, aliquot and store at -20°C. Storage in frost free freezers is not recommended. Avoid repeated freeze/thaw cycles. Suggest spin the vial prior to opening. The antibody solution should be gently mixed before use.
Note For laboratory research only, not for drug, diagnostic or other use.


Database Links

GeneID: 18607 Mouse PDPK1

GeneID: 5170 Human PDPK1

GeneID: 81745 Rat PDPK1

Gene Symbol PDPK1
Gene Full Name 3-phosphoinositide dependent protein kinase 1
Background Phosphorylates and activates not only PKB/AKT, but also PKA, PKC-zeta, RPS6KA1 and RPS6KB1. May play a general role in signaling processes and in development.
Function Serine/threonine kinase which acts as a master kinase, phosphorylating and activating a subgroup of the AGC family of protein kinases. Its targets include: protein kinase B (PKB/AKT1, PKB/AKT2, PKB/AKT3), p70 ribosomal protein S6 kinase (RPS6KB1), p90 ribosomal protein S6 kinase (RPS6KA1, RPS6KA2 and RPS6KA3), cyclic AMP-dependent protein kinase (PRKACA), protein kinase C (PRKCD and PRKCZ), serum and glucocorticoid-inducible kinase (SGK1, SGK2 and SGK3), p21-activated kinase-1 (PAK1), protein kinase PKN (PKN1 and PKN2). Plays a central role in the transduction of signals from insulin by providing the activating phosphorylation to PKB/AKT1, thus propagating the signal to downstream targets controlling cell proliferation and survival, as well as glucose and amino acid uptake and storage. Negatively regulates the TGF-beta-induced signaling by: modulating the association of SMAD3 and SMAD7 with TGF-beta receptor, phosphorylating SMAD2, SMAD3, SMAD4 and SMAD7, preventing the nuclear translocation of SMAD3 and SMAD4 and the translocation of SMAD7 from the nucleus to the cytoplasm in response to TGF-beta. Activates PPARG transcriptional activity and promotes adipocyte differentiation. Activates the NF-kappa-B pathway via phosphorylation of IKKB. The tyrosine phosphorylated form is crucial for the regulation of focal adhesions by angiotensin II. Controls proliferation, survival, and growth of developing pancreatic cells. Participates in the regulation of Ca(2+) entry and Ca(2+)-activated K(+) channels of mast cells. Essential for the motility of vascular endothelial cells (ECs) and is involved in the regulation of their chemotaxis. Plays a critical role in cardiac homeostasis by serving as a dual effector for cell survival and beta-adrenergic response. Plays an important role during thymocyte development by regulating the expression of key nutrient receptors on the surface of pre-T cells and mediating Notch-induced cell growth and proliferative responses. Provides negative feedback inhibition to toll-like receptor-mediated NF-kappa-B activation in macrophages. Isoform 3 is catalytically inactive. [UniProt]
Highlight Related Antibody Duos and Panels:
ARG30219 Phospho PDK1 Antibody Duo (Total, pS241)
Related products:
PDPK1 antibodies; PDPK1 Duos / Panels; Anti-Rabbit IgG secondary antibodies;
Research Area Signaling Transduction antibody
Calculated MW 63 kDa
PTM Phosphorylation on Ser-241 in the activation loop is required for full activity. PDPK1 itself can autophosphorylate Ser-241, leading to its own activation. Autophosphorylation is inhibited by the apoptotic C-terminus cleavage product of PKN2 (By similarity). Tyr-9 phosphorylation is critical for stabilization of both PDPK1 and the PDPK1/SRC complex via HSP90-mediated protection of PDPK1 degradation. Angiotensin II stimulates the tyrosine phosphorylation of PDPK1 in vascular smooth muscle in a calcium- and SRC-dependent manner. Phosphorylated on Tyr-9, Tyr-373 and Tyr-376 by INSR in response to insulin. Palmitate negatively regulates autophosphorylation at Ser-241 and palmitate-induced phosphorylation at Ser-529 and Ser-501 by PKC/PRKCQ negatively regulates its ability to phosphorylate PKB/AKT1. Phosphorylation at Thr-354 by MELK partially inhibits kinase activity, the inhibition is cooperatively enhanced by phosphorylation at Ser-394 and Ser-398 by MAP3K5.
Autophosphorylated; autophosphorylation is inhibited by the apoptotic C-terminus cleavage product of PKN2.
Monoubiquitinated in the kinase domain, deubiquitinated by USP4.

Images (3) Click the Picture to Zoom In

  • ARG51509 anti-PDPK1 phospho (Ser241) antibody ICC/IF image

    Immunofluorescence: Methanol-fixed HeLa cells stained with ARG51509 anti-PDPK1 phospho (Ser241) antibody.

  • ARG51509 anti-PDPK1 phospho (Ser241) antibody IHC-P image

    Immunohistochemistry: Paraffin-embedded Human breast carcinoma tissue stained with ARG51509 anti-PDPK1 phospho (Ser241) antibody (left) or the same antibody preincubated with blocking peptide (right).

  • ARG51509 anti-PDPK1 phospho (Ser241) antibody WB image

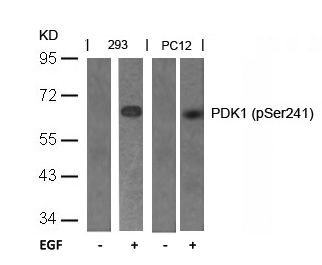

    Western blot: Extracts from 293 and PC-12 cells untreated or treated with EGF stained with ARG51509 anti-PDPK1 phospho (Ser241) antibody.

Specific References

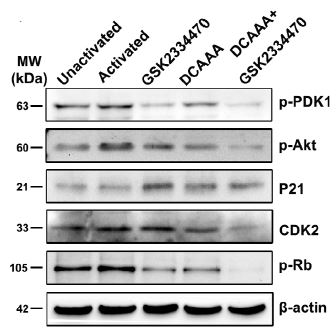

Combination of N, N'-dicyclohexyl-N-arachidonic acylurea and tacrolimus prolongs cardiac allograft survival in mice.

WB / Mouse

Ke An et al.
Immunol Cell Biol.,  (2020)
