ARG54151

anti-ZAP70 antibody

anti-ZAP70 antibody for Western blot,Immunoprecipitation and Human

Controls and Markers antibody; Immune System antibody; Signaling Transduction antibody; SyK / Zap70 Pathway antibody

Overview

Product Description Mouse Monoclonal antibody recognizes ZAP70
Tested Reactivity Hu
Tested Application IP, WB
Host Mouse
Clonality Monoclonal
Isotype IgG2b
Target Name ZAP70
Antigen Species Human
Immunogen Purified recombinant human ZAP-70 protein fragments expressed in E.coli.
Conjugation Un-conjugated
Alternate Names STD; SRK; STCD; 70 kDa zeta-chain associated protein; Tyrosine-protein kinase ZAP-70; TZK; Syk-related tyrosine kinase; ZAP-70; EC 2.7.10.2

Application Instructions

Application Suggestion
Tested Application Dilution
IPAssay-dependent
WB1:1000
Application Note * The dilutions indicate recommended starting dilutions and the optimal dilutions or concentrations should be determined by the scientist.
Observed Size 70 kDa

Properties

Form Liquid
Purification Affinity purified
Buffer PBS (pH 7.4), 0.02% Sodium azide and 50% Glycerol
Preservative 0.02% Sodium azide
Stabilizer 50% Glycerol
Concentration 1.5 mg/ml
Storage Instruction For continuous use, store undiluted antibody at 2-8°C for up to a week. For long-term storage, aliquot and store at -20°C. Storage in frost free freezers is not recommended. Avoid repeated freeze/thaw cycles. Suggest spin the vial prior to opening. The antibody solution should be gently mixed before use.
Note For laboratory research only, not for drug, diagnostic or other use.

Bioinformation

Database Links

GeneID: 7535 Human ZAP70

Swiss-port # P43403 Human Tyrosine-protein kinase ZAP-70

Gene Symbol ZAP70
Gene Full Name zeta-chain (TCR) associated protein kinase 70kDa
Background Tyrosine kinase that plays an essential role in regulation of the adaptive immune response.Regulates motility,adhesion and cytokine expression of mature T-cells,as well as thymocyte development.Contributes also to the development and activation of primary B-lymphocytes.When antigen presenting cells (APC) activate T-cell receptor (TCR),a serie of phosphorylations lead to the recruitment of ZAP70 to the doubly phosphorylated TCR component CD247/CD3Z through ITAM motif at the plasma membrane.This recruitment serves to localization to the stimulated TCR and to relieve its autoinhibited conformation.Release of ZAP70 active conformation is further stabilized by phosphorylation mediated by LCK.Subsequently,ZAP70 phosphorylates at least 2 essential adapter proteins: LAT and LCP2. In turn,a large number of signaling molecules are recruited and ultimately lead to lymphokine production,T-cell proliferation and differentiation.Furthermore,ZAP70 controls cytoskeleton modifications,adhesion and mobility of T-lymphocytes,thus ensuring correct delivery of effectors to the APC.ZAP70 is also required for TCR-CD247/CD3Z internalization and degradation through interaction with the E3 ubiquitin-protein ligase CBL and adapter proteins SLA and SLA2.Thus,ZAP70 regulates both T-cell activation switch on and switch off by modulating TCR expression at the T-cell surface.During thymocyte development,ZAP70 promotes survival and cell-cycle progression of developing thymocytes before positive selection (when cells are still CD4/CD8 double negative).Additionally,ZAP70-dependent signaling pathway may also contribute to primary B-cells formation and activation through B-cell receptor (BCR).
Function Tyrosine kinase that plays an essential role in regulation of the adaptive immune response. Regulates motility, adhesion and cytokine expression of mature T-cells, as well as thymocyte development. Contributes also to the development and activation of primary B-lymphocytes. When antigen presenting cells (APC) activate T-cell receptor (TCR), a serie of phosphorylations lead to the recruitment of ZAP70 to the doubly phosphorylated TCR component CD247/CD3Z through ITAM motif at the plasma membrane. This recruitment serves to localization to the stimulated TCR and to relieve its autoinhibited conformation. Release of ZAP70 active conformation is further stabilized by phosphorylation mediated by LCK. Subsequently, ZAP70 phosphorylates at least 2 essential adapter proteins: LAT and LCP2. In turn, a large number of signaling molecules are recruited and ultimately lead to lymphokine production, T-cell proliferation and differentiation. Furthermore, ZAP70 controls cytoskeleton modifications, adhesion and mobility of T-lymphocytes, thus ensuring correct delivery of effectors to the APC. ZAP70 is also required for TCR-CD247/CD3Z internalization and degradation through interaction with the E3 ubiquitin-protein ligase CBL and adapter proteins SLA and SLA2. Thus, ZAP70 regulates both T-cell activation switch on and switch off by modulating TCR expression at the T-cell surface. During thymocyte development, ZAP70 promotes survival and cell-cycle progression of developing thymocytes before positive selection (when cells are still CD4/CD8 double negative). Additionally, ZAP70-dependent signaling pathway may also contribute to primary B-cells formation and activation through B-cell receptor (BCR). [UniProt]
Cellular Localization Cytoplasm. Cell membrane; Peripheral membrane protein. Note: In quiescent T-lymphocytes, it is cytoplasmic. Upon TCR activation, it is recruited at the plasma membrane by interacting with CD247/CD3Z. Colocalizes together with RHOH in the immunological synapse. RHOH is required for its proper localization to the cell membrane and cytoskeleton fractions in the thymocytes By similarity.
Research Area Controls and Markers antibody; Immune System antibody; Signaling Transduction antibody; SyK / Zap70 Pathway antibody
Calculated MW 70 kDa
PTM Phosphorylated on tyrosine residues upon T-cell antigen receptor (TCR) stimulation. Phosphorylation of Tyr-315 and Tyr-319 are essential for ZAP70 positive function on T-lymphocyte activation whereas Tyr-292 has a negative regulatory role. Within the C-terminal kinase domain, Tyr-492 and Tyr-493 are phosphorylated after TCR induction, Tyr-492 playing a negative regulatory role and Tyr-493 a positive. Tyr-493 is dephosphorylated by PTN22.
Ubiquitinated in response to T cell activation. Deubiquitinated by OTUD7B.

Images (2) Click the Picture to Zoom In

  • ARG54151 anti-ZAP70 antibody WB image

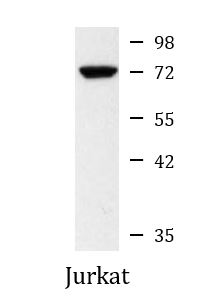

    Western blot: Jurkat cell lysate stained with ARG54151 anti-ZAP70 antibody at 1:1000 dilution.

  • ARG54151 anti-ZAP70 antibody IP image

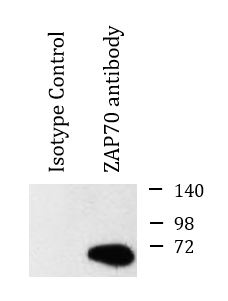

    Immunoprecipitation: Jurkat cell lysates were immunoprecipitated and stained with ARG54151 anti-ZAP70 antibody.
