ARG83004

arigoPLEX® Rat Inflammatory Cytokine Multiplex ELISA Kit (IL1 beta, IL6, IL10, TNF alpha)

arigoPLEX® Rat Inflammatory Cytokine Multiplex ELISA Kit (IL1 beta, IL6, IL10, TNF alpha) for ELISA and Rat

Component

Cat No Component Name Package Temp
ARG83004-01 Antibody Coated Microplate 8 X 12 strips 4°C
ARG83004-02 Standards Mixture 2 vials 4°C
ARG83004-03 10X Antibody Conjugate Mixture 1.2 ml ≤ -20°C
ARG83004-04 40X HRP-Streptavidin concentrate 300 μl 4°C
ARG83004-05 Standard/Sample Diluent Buffer 30 ml 4°C
ARG83004-06 Antibody Diluent Buffer 50 ml 4°C
ARG83004-07 Serum Diluent Buffer 10 ml 4°C
ARG83004-08 10X Wash Buffer 2 X 50 ml 4°C
ARG83004-09 TMB substrate 12 ml 4°C (protect from light)
ARG83004-10 STOP solution 6 ml 4°C
ARG83004-11 Plate sealer 3 strips Room temperature

Overview

Product Description ARG83004 arigoPLEX® Rat Inflammatory Cytokine Multiplex ELISA Kit (IL1 beta, IL6, IL10, TNF alpha) is an Enzyme Immunoassay kit for the semi-quantification of Rat Inflammatory Cytokine (IL1 beta, IL6, IL10, TNF alpha) in serum, plasma and cell culture supernatants.

See all Multiplex ELISA kits
Tested Reactivity Rat
Tested Application ELISA
Target Name IL1 beta, IL6, IL10, TNF alpha
Conjugation HRP
Conjugation Note Substrate: TMB and read at 450 nm.
Sensitivity IL1 beta: 31.3 pg/ml
IL6: 62.5 pg/ml
IL10: 31.3 pg/ml
TNF alpha: 31.3 pg/ml
Sample Type Serum, plasma and cell culture supernatants.
Standard Range IL1 beta: 62.5 - 4000 pg/ml
IL6: 125 - 8000 pg/ml
IL10: 62.5 - 4000 pg/ml
TNF alpha: 62.5 - 4000 pg/ml
Sample Volume 25 µl
Alternate Names IL1 beta: Interleukin-1 beta; IL1-BETA; IL-1; IL-1 beta; Catabolin; IL1F2
IL6: B-cell stimulatory factor 2; CDF; HSF; BSF-2; Interferon beta-2; IL-6; IFNB2; CTL differentiation factor; Interleukin-6; HGF; Hybridoma growth factor; BSF2; IFN-beta-2
IL10: IL10A; GVHDS; TGIF; IL-10; Cytokine synthesis inhibitory factor; CSIF; Interleukin-10
TNF alpha: Tumor necrosis factor ligand superfamily member 2; DIF; Cachectin; ICD2; ICD1; N-terminal fragment; TNF-a; TNFA; TNFSF2; TNF-alpha; Tumor necrosis factor; NTF; Human Proinflammatory Cytokine Multiplex; IL6; Multiplex ELISA; Cytokine detection; Cytokine profiling; Proinflammatory cytokines; Inflammatory response; Human cytokines; Immunology; Life sciences; Research kit; High sensitivity; High throughput; Multiplex assay;

Application Instructions

Assay Time ~ 5 hours

Properties

Form 96 well
Storage Instruction Store components at 4°C or -20°C. Do not expose test reagents to heat, sun or strong light during storage and usage. Please refer to the product user manual for detail temperatures of the components.
Note For laboratory research only, not for drug, diagnostic or other use.

Bioinformation

Gene Symbol Il1b; Il6; Il10; Tnf
Gene Full Name Interleukin 1, beta
Interleukin 6
Interleukin 10
Tumor necrosis factor
Background IL1 beta: The protein encoded by this gene is a member of the interleukin 1 cytokine family. This cytokine is produced by activated macrophages as a proprotein, which is proteolytically processed to its active form by caspase 1 (CASP1/ICE). This cytokine is an important mediator of the inflammatory response, and is involved in a variety of cellular activities, including cell proliferation, differentiation, and apoptosis. The induction of cyclooxygenase-2 (PTGS2/COX2) by this cytokine in the central nervous system (CNS) is found to contribute to inflammatory pain hypersensitivity. This gene and eight other interleukin 1 family genes form a cytokine gene cluster on chromosome 2. [provided by RefSeq, Jul 2008]

IL6: This gene encodes a cytokine that functions in inflammation and the maturation of B cells. In addition, the encoded protein has been shown to be an endogenous pyrogen capable of inducing fever in people with autoimmune diseases or infections. The protein is primarily produced at sites of acute and chronic inflammation, where it is secreted into the serum and induces a transcriptional inflammatory response through interleukin 6 receptor, alpha. The functioning of this gene is implicated in a wide variety of inflammation-associated disease states, including suspectibility to diabetes mellitus and systemic juvenile rheumatoid arthritis. Alternative splicing results in multiple transcript variants. [provided by RefSeq, Dec 2015]

IL10: The protein encoded by this gene is a cytokine produced primarily by monocytes and to a lesser extent by lymphocytes. This cytokine has pleiotropic effects in immunoregulation and inflammation. It down-regulates the expression of Th1 cytokines, MHC class II Ags, and costimulatory molecules on macrophages. It also enhances B cell survival, proliferation, and antibody production. This cytokine can block NF-kappa B activity, and is involved in the regulation of the JAK-STAT signaling pathway. Knockout studies in mice suggested the function of this cytokine as an essential immunoregulator in the intestinal tract. Mutations in this gene are associated with an increased susceptibility to HIV-1 infection and rheumatoid arthritis.[provided by RefSeq, May 2011]

TNF alpha: TNF alpha is a multifunctional proinflammatory cytokine that belongs to the tumor necrosis factor (TNF) superfamily. This cytokine is mainly secreted by macrophages. It can bind to, and thus functions through its receptors TNFRSF1A/TNFR1 and TNFRSF1B/TNFBR. This cytokine is involved in the regulation of a wide spectrum of biological processes including cell proliferation, differentiation, apoptosis, lipid metabolism, and coagulation. This cytokine has been implicated in a variety of diseases, including autoimmune diseases, insulin resistance, and cancer. Knockout studies in mice also suggested the neuroprotective function of this cytokine. [provided by RefSeq, Jul 2008]
Function IL1 beta: Potent Inflammatory cytokine. Initially discovered as the major endogenous pyrogen, induces prostaglandin synthesis, neutrophil influx and activation, T-cell activation and cytokine production, B-cell activation and antibody production, and fibroblast proliferation and collagen production. Promotes Th17 differentiation of T-cells. Synergizes with IL12/interleukin-12 to induce IFNG synthesis from T-helper 1 (Th1) cells (PubMed:10653850). [UniProt]

IL6: Cytokine with a wide variety of biological functions. It is a potent inducer of the acute phase response. Plays an essential role in the final differentiation of B-cells into Ig-secreting cells Involved in lymphocyte and monocyte differentiation. Acts on B-cells, T-cells, hepatocytes, hematopoietic progenitor cells and cells of the CNS. Required for the generation of T(H)17 cells. Also acts as a myokine. It is discharged into the bloodstream after muscle contraction and acts to increase the breakdown of fats and to improve insulin resistance. It induces myeloma and plasmacytoma growth and induces nerve cells differentiation. [UniProt]

IL10: Inhibits the synthesis of a number of cytokines, including IFN-gamma, IL-2, IL-3, TNF and GM-CSF produced by activated macrophages and by helper T-cells. [UniProt]

TNF alpha: Cytokine that binds to TNFRSF1A/TNFR1 and TNFRSF1B/TNFBR. It is mainly secreted by macrophages and can induce cell death of certain tumor cell lines. It is potent pyrogen causing fever by direct action or by stimulation of interleukin-1 secretion and is implicated in the induction of cachexia, Under certain conditions it can stimulate cell proliferation and induce cell differentiation. Impairs regulatory T-cells (Treg) function in individuals with rheumatoid arthritis via FOXP3 dephosphorylation. Upregulates the expression of protein phosphatase 1 (PP1), which dephosphorylates the key 'Ser-418' residue of FOXP3, thereby inactivating FOXP3 and rendering Treg cells functionally defective (PubMed:23396208). Key mediator of cell death in the anticancer action of BCG-stimulated neutrophils in combination with DIABLO/SMAC mimetic in the RT4v6 bladder cancer cell line (PubMed:22517918, PubMed:16829952, PubMed:23396208). Induces insulin resistance in adipocytes via inhibition of insulin-induced IRS1 tyrosine phosphorylation and insulin-induced glucose uptake. Induces GKAP42 protein degradation in adipocytes which is partially responsible for TNF-induced insulin resistance (By similarity).

The TNF intracellular domain (ICD) form induces IL12 production in dendritic cells. [UniProt]
Cellular Localization IL1 beta: Cytoplasm, cytosol. Lysosome. Secreted, exosome. Secreted. [UniProt]

IL6: Secreted. [UniProt]

IL10: Secreted. [UniProt]

TNF alpha: Cell membrane; Single-pass type II membrane protein. Tumor necrosis factor, membrane form: Membrane; Single-pass type II membrane protein. Tumor necrosis factor, soluble form: Secreted. C-domain 1: Secreted. C-domain 2: Secreted. [UniProt]
Highlight Related Product:
IL1 beta antibodies;
IL6 antibodies;
IL10 antibodies;
TNF alpha antibodies;
PTM IL1 beta: Activation of the IL1B precursor involves a CASP1-catalyzed proteolytic cleavage. Processing and secretion are temporarily associated. [UniProt]

IL6: N- and O-glycosylated. [UniProt]

IL10: Showing features for signal, chain, disulfide bond, glycosylation. [UniProt]

TNF alpha: The soluble form derives from the membrane form by proteolytic processing. The membrane-bound form is further proteolytically processed by SPPL2A or SPPL2B through regulated intramembrane proteolysis producing TNF intracellular domains (ICD1 and ICD2) released in the cytosol and TNF C-domain 1 and C-domain 2 secreted into the extracellular space.

The membrane form, but not the soluble form, is phosphorylated on serine residues. Dephosphorylation of the membrane form occurs by binding to soluble TNFRSF1A/TNFR1.

O-glycosylated; glycans contain galactose, N-acetylgalactosamine and N-acetylneuraminic acid. [UniProt]

Images (5) Click the Picture to Zoom In

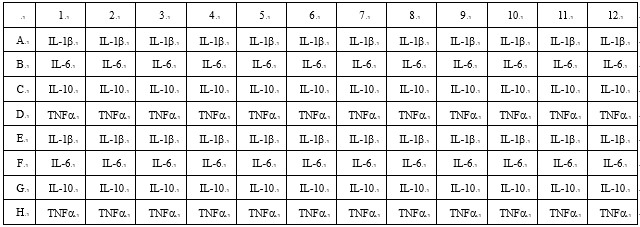

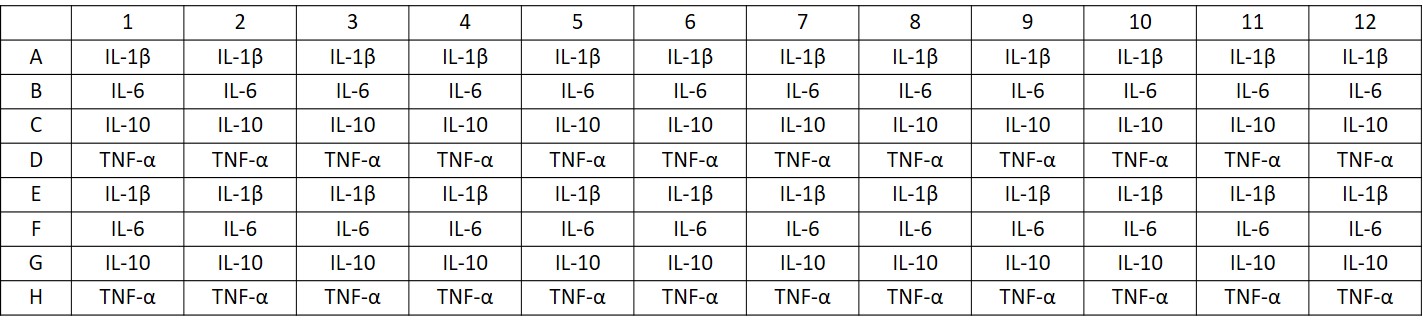

  • Antibodies Coating Pattern In Microtiter Plate of ARG83004 arigoPLEX® Rat Inflammatory Cytokine Multiplex ELISA Kit (IL1 beta, IL6, IL10, TNF alpha)

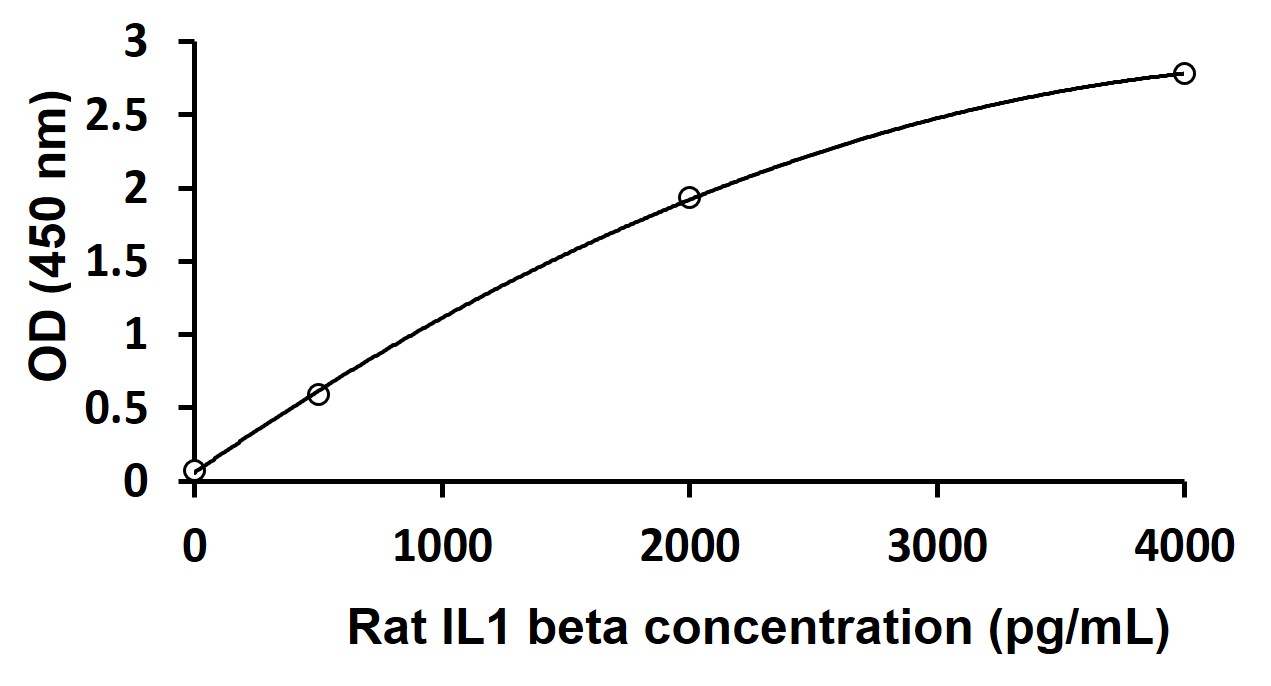

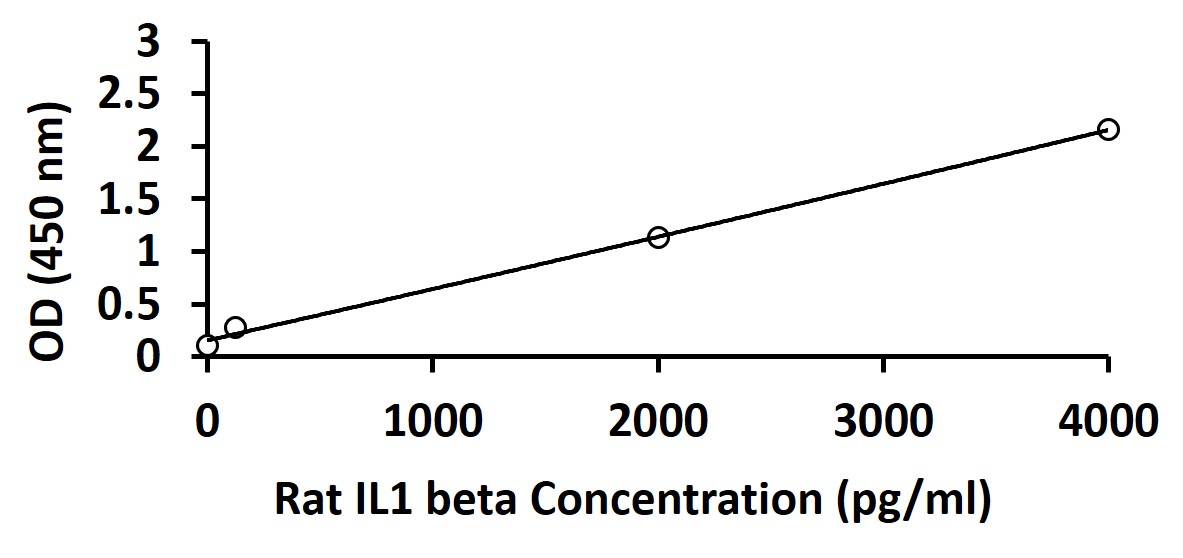

  • ARG83004 arigoPLEX® Rat Inflammatory Cytokine Multiplex ELISA Kit (IL1 beta, IL6, IL10, TNF alpha) standard curve image

    ARG83004 arigoPLEX® Rat Inflammatory Cytokine Multiplex ELISA Kit (IL1 beta, IL6, IL10, TNF alpha) results of a typical standard for Rat IL1 beta run with optical density reading at 450 nm.

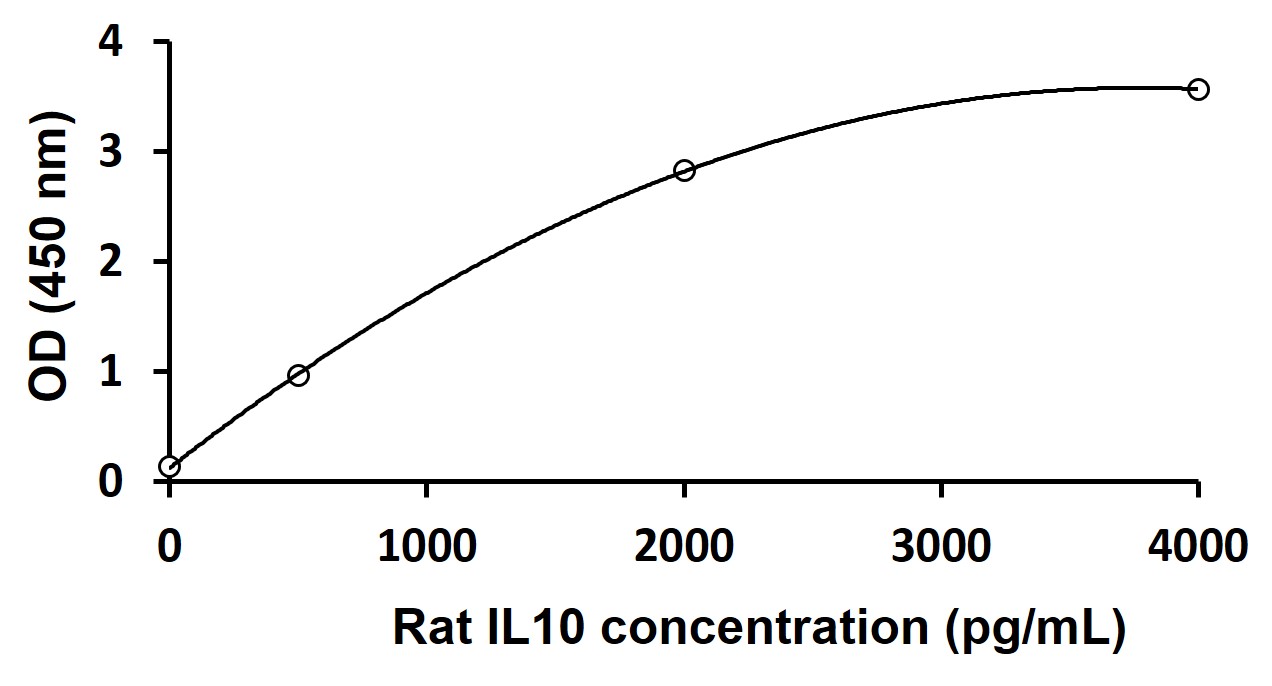

  • ARG83004 arigoPLEX® Rat Inflammatory Cytokine Multiplex ELISA Kit (IL1 beta, IL6, IL10, TNF alpha) standard curve image

    ARG83004 arigoPLEX® Rat Inflammatory Cytokine Multiplex ELISA Kit (IL1 beta, IL6, IL10, TNF alpha) results of a typical standard for Rat IL10 run with optical density reading at 450 nm.

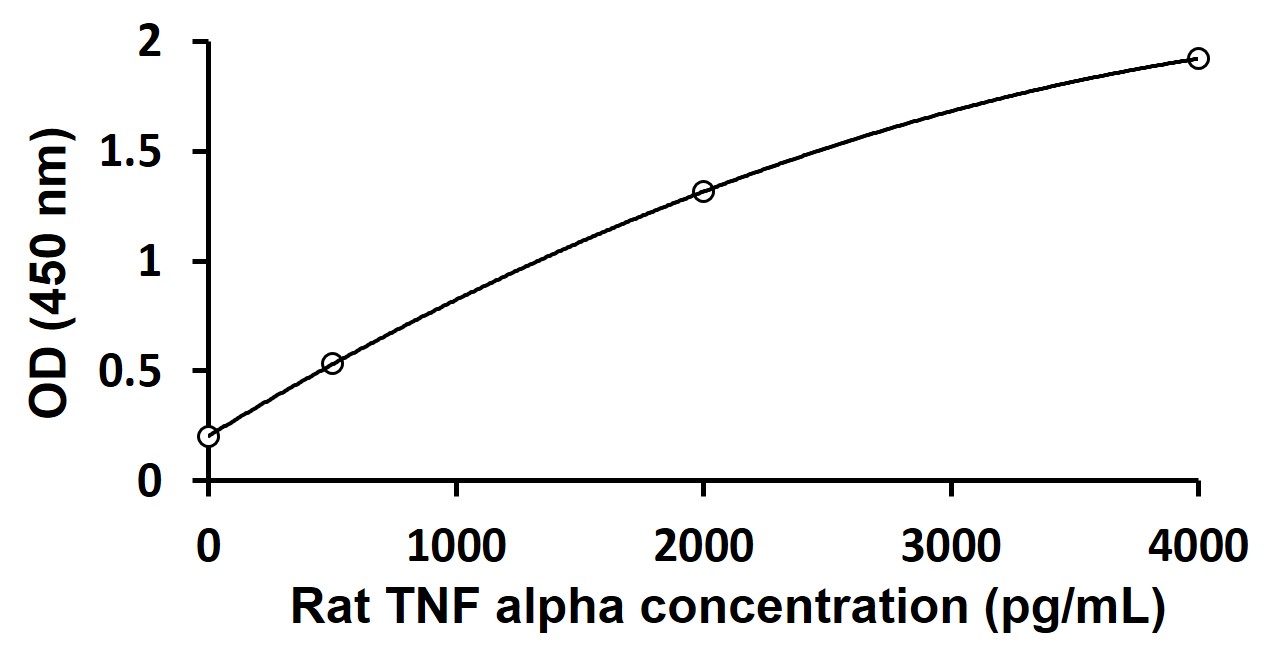

  • ARG83004 arigoPLEX® Rat Inflammatory Cytokine Multiplex ELISA Kit (IL1 beta, IL6, IL10, TNF alpha) standard curve image

    ARG83004 arigoPLEX® Rat Inflammatory Cytokine Multiplex ELISA Kit (IL1 beta, IL6, IL10, TNF alpha) results of a typical standard for Rat TNF alpha run with optical density reading at 450 nm.

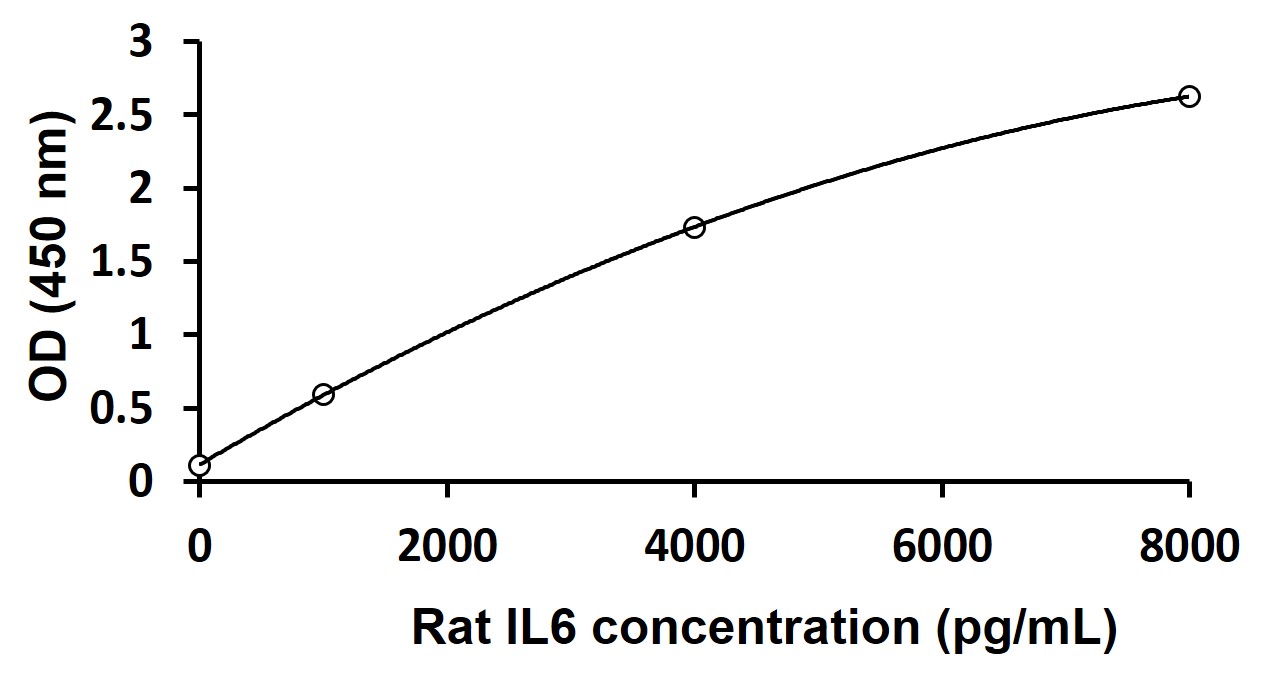

  • ARG83004 arigoPLEX® Rat Inflammatory Cytokine Multiplex ELISA Kit (IL1 beta, IL6, IL10, TNF alpha) standard curve image

    ARG83004 arigoPLEX® Rat Inflammatory Cytokine Multiplex ELISA Kit (IL1 beta, IL6, IL10, TNF alpha) results of a typical standard for Rat IL6 run with optical density reading at 450 nm.

Title Download Link
ARG83004 arigoPLEX® Rat Inflammatory Cytokine Multiplex ELISA Kit (IL1 beta, IL6, IL10, TNF alpha) User manual download icon Download
