anti-Ubiquilin 2 antibody [6H9]

anti-Ubiquilin 2 antibody [6H9] for ICC/IF,IHC-Frozen sections,Western blot and Human,Mouse,Rat


Product Description Mouse Monoclonal antibody [6H9] recognizes Ubiquilin 2
Tested Reactivity Hu, Ms, Rat
Tested Application ICC/IF, IHC-Fr, WB
Host Mouse
Clonality Monoclonal
Clone 6H9
Isotype IgG1
Target Name Ubiquilin 2
Antigen Species Human
Immunogen Human Ubiquilin 2 expressed in and purified from E. coli.
Conjugation Un-conjugated
Alternate Names PLIC-2; Ubiquitin-like product Chap1/Dsk2; HRIHFB2157; Chap1; DSK2 homolog; PLIC2; ALS15; DSK2; CHAP1; Protein linking IAP with cytoskeleton 2; N4BP4; Ubiquilin-2; hPLIC-2

Application Instructions

Application Suggestion
Tested Application Dilution
WB1:1000 - 1:2000
Application Note * The dilutions indicate recommended starting dilutions and the optimal dilutions or concentrations should be determined by the scientist.


Form Liquid
Purification Affinity purification.
Buffer PBS and 50% Glycerol.
Stabilizer 50% Glycerol
Concentration 1 mg/ml
Storage Instruction For continuous use, store undiluted antibody at 2-8°C for up to a week. For long-term storage, aliquot and store at -20°C. Storage in frost free freezers is not recommended. Avoid repeated freeze/thaw cycles. Suggest spin the vial prior to opening. The antibody solution should be gently mixed before use.
Note For laboratory research only, not for drug, diagnostic or other use.


Database Links

GeneID: 29978 Human UBQLN2

GeneID: 54609 Mouse UBQLN2

Swiss-port # Q9QZM0 Mouse Ubiquilin-2

Swiss-port # Q9UHD9 Human Ubiquilin-2

Gene Symbol UBQLN2
Gene Full Name ubiquilin 2
Background This gene encodes an ubiquitin-like protein (ubiquilin) that shares high degree of similarity with related products in yeast, rat and frog. Ubiquilins contain a N-terminal ubiquitin-like domain and a C-terminal ubiquitin-associated domain. They physically associate with both proteasomes and ubiquitin ligases; and thus, are thought to functionally link the ubiquitination machinery to the proteasome to affect in vivo protein degradation. This ubiquilin has also been shown to bind the ATPase domain of the Hsp70-like Stch protein. [provided by RefSeq, Oct 2009]
Function Plays an important role in the regulation of different protein degradation mechanisms and pathways including ubiquitin-proteasome system (UPS), autophagy and the endoplasmic reticulum-associated protein degradation (ERAD) pathway. Mediates the proteasomal targeting of misfolded or accumulated proteins for degradation by binding (via UBA domain) to their polyubiquitin chains and by interacting (via ubiquitin-like domain) with the subunits of the proteasome. Plays a role in the ERAD pathway via its interaction with ER-localized proteins FAF2/UBXD8 and HERPUD1 and may form a link between the polyubiquitinated ERAD substrates and the proteasome. Involved in the regulation of macroautophagy and autophagosome formation; required for maturation of autophagy-related protein LC3 from the cytosolic form LC3-I to the membrane-bound form LC3-II and may assist in the maturation of autophagosomes to autolysosomes by mediating autophagosome-lysosome fusion. Negatively regulates the endocytosis of GPCR receptors: AVPR2 and ADRB2, by specifically reducing the rate at which receptor-arrestin complexes concentrate in clathrin-coated pits (CCPs). [UniProt]
Calculated MW 66 kDa
PTM Degraded during macroautophagy.

Images (4) Click the Picture to Zoom In

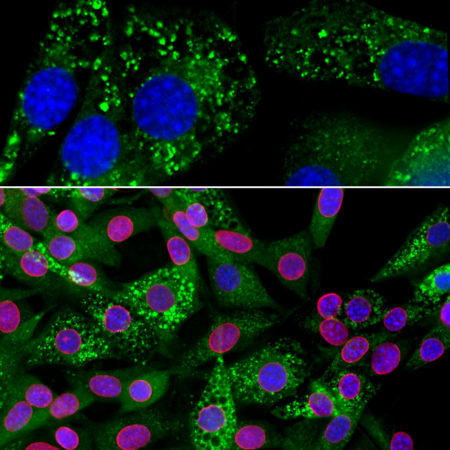

  • ARG10728 anti-Ubiquilin 2 antibody [6H9] ICC/IF image

    Immunofluorescence: NIH/3T3 cells stained with ARG10728 anti-Ubiquilin 2 antibody [6H9] (green) at 1:1000 dilution and costained with ARG10685 anti-Lamin A + C antibody (red) at 1:5000 dilution. DAPI (blue) for nuclear staining.

    The cells were treated with 50 µM of chloroquine, an inhibitor of autophagy, for 16 hours prior to staining. Clone 6H9 antibody reveals punctate staining of ubiquilin 2 protein accumulated in lysosomes in the cytoplasm, while the Lamin A + C antibody stains the nuclear lamina.

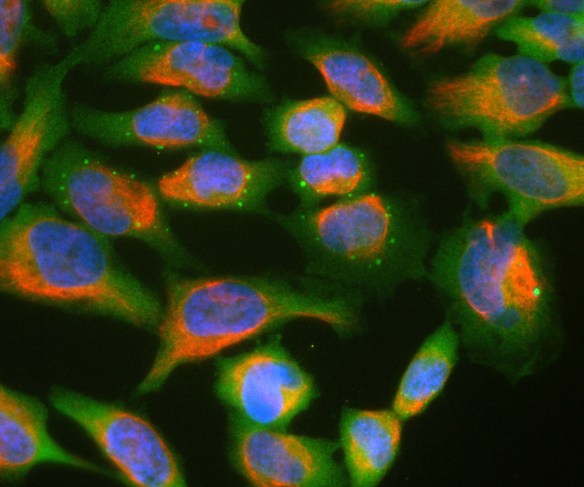

  • ARG10728 anti-Ubiquilin 2 antibody [6H9] ICC/IF image

    Immunocytochemistry: HeLa cell cultures stained with ARG10728 anti-Ubiquilin 2 antibody [6H9] (green) and co-stained with chicken polyclonal antibody to vimentin (red). In most individual cells, ubiquilin 2 is present diffusely in the cytoplasm of cells, though some cells show enrichment of the protein in spherical autophagosome-like structure.

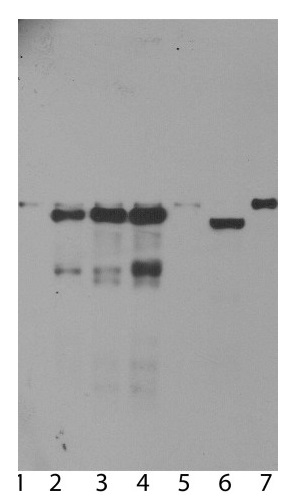

  • ARG10728 anti-Ubiquilin 2 antibody [6H9] WB image

    Western blot: 1) Untransfected primary Mouse neuron and glia cell cultures, 2) the same cells transduced with Human ubiquilin 2 wild type, 3) with ubiquilin 2 P506T mutant, 4) with ubiquilin 2 P497S mutant, and 5) with enhanced GFP control; 6) HeLa cells, and 7) 3T3 cells stained with ARG10728 anti-Ubiquilin 2 antibody [6H9]. In primary mouse neuron and glia cell culture, endogenous ubiquilin 2 appears as a weak band at 68 kDa in all transduced and non-transduced cells, indicating low endogenous expression of mouse ubiquilin 2. Strong bands are seen in the cells transduced with Human wild type or mutant ubiquilin 2. Small proteins run at 50 kDa in these cells are the fragments of ubiquilin 2. Note, ubiquilin 2 run at ~66 kDa in Human HeLa cells and 68 kDa in rodent 3T3 cells.

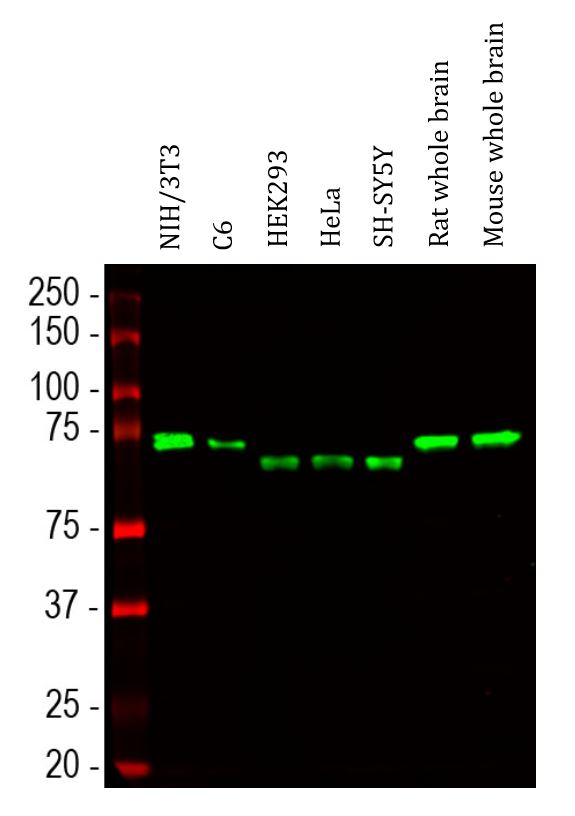

  • ARG10728 anti-Ubiquilin 2 antibody [6H9] WB image

    Western blot: NIH/3T3, C6, HEK293, HeLa, SH-SY5Y, Rat whole brain and Mouse whole brain lysates stained with ARG10728 anti-Ubiquilin 2 antibody [6H9] (green) at 1:1000 dilution.
