Human HMGB1 ELISA Kit for ELISA and Human

publication_link Publication7


Cat No Component Name Package Temp
ARG81185-001 antibody-coated microplate 12 X 8 strips 4°C
ARG81185-002 Standard (100 ng) 1 vial (lyophilized) 4°C, store at -20 °C after reconstitution
ARG81185-003 Standard reconstitution buffer 1.1 ml 4°C
ARG81185-004 HRP-antibody Conjugate (200X) 115 μl 4°C
ARG81185-005 Sample & Antibody diluent buffer 50 ml 4°C
ARG81185-006 10X Wash buffer 20 ml 4°C
ARG81185-007 TMB substrate 12 ml (ready-to-use) 4°C (Protect from light)
ARG81185-008 STOP solution 6 ml 4°C


Product Description ARG81185 Human HMGB1 ELISA Kit is an Enzyme Immunoassay kit in simple steps with good precision for the quantification of Human HMGB1 in plasma and cell culture supernatants.
Tested Reactivity Hu
Predict Reactivity Ms, Rat
Tested Application ELISA
Specificity This Human HMGB1 ELISA kit detect natural and recombinant Human HMGB1 protein and the cross-reactivity with HMGB2 is lower than <2%.
Target Name HMGB1
Conjugation HRP
Conjugation Note Substrate: TMB and read at 450 nm.
Sensitivity 0.3 ng/ml
Sample Type Plasma and cell culture supernatants.
Standard Range 0.3125 - 20 ng/ml
Sample Volume 100 µl

< 5.2%

Full Name high mobility group box 1
Alternate Names HMG-1; High mobility group protein B1; High mobility group protein 1; HMG1; SBP-1; HMG3

Application Instructions

Assay Time Overnight


Form 96 well
Storage instruction Store the kit at 2-8°C. Keep microplate wells sealed in a dry bag with desiccants. Do not expose test reagents to heat, sun or strong light during storage and usage. Please refer to the product user manual for detail temperatures of the components.
Note For laboratory research only, not for drug, diagnostic or other use.


Database links

GeneID: 3146 Human HMGB1

Swiss-port # P09429 Human High mobility group protein B1

Gene Symbol HMGB1
Gene Full Name high mobility group box 1
Background HMGB1 is a protein that belongs to the High Mobility Group-box superfamily. The encoded non-histone, nuclear DNA-binding protein regulates transcription, and is involved in organization of DNA. This protein plays a role in several cellular processes, including inflammation, cell differentiation and tumor cell migration. Multiple pseudogenes of this gene have been identified. Alternative splicing results in multiple transcript variants that encode the same protein. [provided by RefSeq, Sep 2015]
Function HMGB1 is a DNA binding protein. It associates with chromatin and has the ability to bend DNA. Binds preferentially single-stranded DNA. Involved in V(D)J recombination by acting as a cofactor of the RAG complex. Acts by stimulating cleavage and RAG protein binding at the 23 bp spacer of conserved recombination signal sequences (RSS). [UniProt]
Highlight Related products:
HMGB1 antibodies; HMGB1 ELISA Kits; HMGB1 Duos / Panels; HMGB1 recombinant proteins;
Related news:
HMGB1, a biomarker and therapeutic target in COVID-19
Total solution for HMGB1 research
HMGB1 in inflammation
Inflammatory Cytokines
HMGB1 ELISA Kit for your research
Detecting the DAMPs in cancer therapy by HMGB1 ELISA kit
New HMGB1 neutralizing antibody is released
Detecting exosomal HMGB1 for ICD research
Related poster download:
HMGB1 Pathway.pdf
New ELISA data calculation tool:
Simplify the ELISA analysis by GainData
PTM Phosphorylated at serine residues. Phosphorylation in both NLS regions is required for cytoplasmic translocation followed by secretion (PubMed:17114460).
Acetylated on multiple sites upon stimulation with LPS (PubMed:22801494). Acetylation on lysine residues in the nuclear localization signals (NLS 1 and NLS 2) leads to cytoplasmic localization and subsequent secretion (By similarity). Acetylation on Lys-3 results in preferential binding to DNA ends and impairs DNA bending activity (By similarity).
Reduction/oxidation of cysteine residues Cys-23, Cys-45 and Cys-106 and a possible intramolecular disulfide bond involving Cys-23 and Cys-45 give rise to different redox forms with specific functional activities in various cellular compartments: 1- fully reduced HMGB1 (HMGB1C23hC45hC106h), 2- disulfide HMGB1 (HMGB1C23-C45C106h) and 3- sulfonyl HMGB1 (HMGB1C23soC45soC106so).
Poly-ADP-ribosylated by PARP1 when secreted following stimulation with LPS (By similarity).
In vitro cleavage by CASP1 is liberating a HMG box 1-containing peptide which may mediate immunogenic activity; the peptide antagonizes apoptosis-induced immune tolerance (PubMed:24474694). Can be proteolytically cleaved by a thrombin:thrombomodulin complex. (By similarity).

Images (2) Click the Picture to Zoom In

  • ARG81185 Human HMGB1 ELISA Kit standard curve image

    ARG81185 Human HMGB1 ELISA Kit results of a typical standard run with optical density reading at 450 nm.

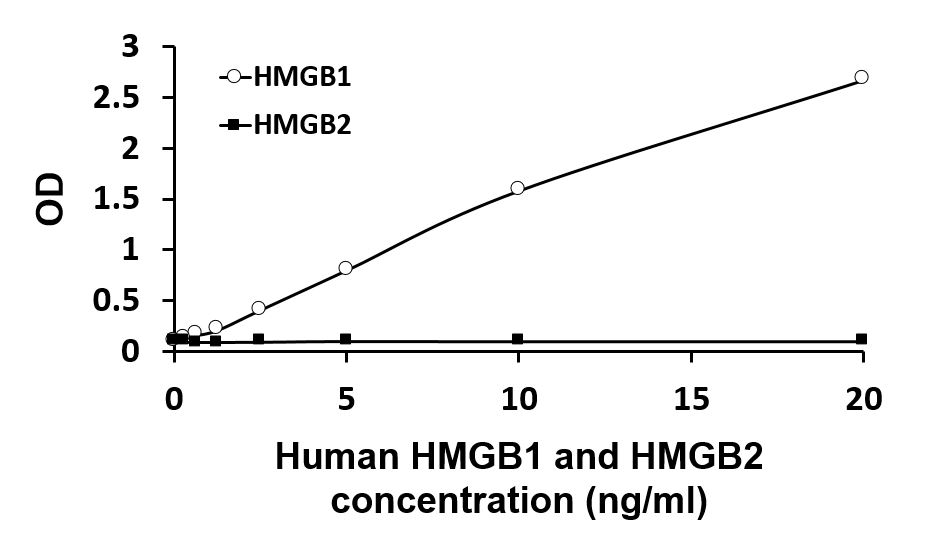

  • ARG81185 Human HMGB1 ELISA Kit specificity testing image

    Recombinant HMGB1 and recombinant HMGB2 were used for ARG81185 Human HMGB1 ELISA Kit specificity test. The data showed no significant cross-reactivity or interference with recombinant human HMGB2.

Specific References

The effect of IGFBP-4 treatment on immunogenic cell death in A549 cells and its mechanism.

ELISA / Human / Cell culture supernatant

Xiu Lan et al.
Journal of Wezhou medical university.,  (2021)




Tumor-derived HMGB1 induces CD62L dim neutrophil polarization and promotes lung metastasis in triple-negative breast cancer.

ELISA / Human / Serum

Zhen Wang et al.
Oncogenesis.,  (2020)




Indirect regulation of HMGB1 release by gasdermin D.

ELISA / Mouse / Plasma

Allen Volchuk et al.
Nat Commun.,  (2020)




High-mobility Group Protein B1: A Predictive Biomarker for Hepatic Encephalopathy After Transjugular Intrahepatic Portosystemic Shunt.

ELISA / Human / Serum

Chen Quan et al.
J Hepatobiliary Pancreat Sci.,  (2020)




High Mobility Group box-1 Protects Against Aflatoxin G 1-induced Pulmonary Epithelial Cell Damage in the Lung Inflammatory Environment.

ELISA / Human / Cell culture medium

Kang Lifei et al.
Toxicol Lett.,  (2020)




Evidence of necroptosis in osteoarthritic disease: investigation of blunt mechanical impact as possible trigger in regulated necrosis.

ELISA / Human

Riegger Jana et al.
Cell Death Dis.,  (2019)




High-mobility group box 1 protein modulated Proliferation and Radioresistance in Esophageal Squamous Cell Carcinoma.

ELISA / Human

Di Xiaoke et al.
J Gastroenterol Hepatol.,  (2018)



Title Download Link
ARG81185 Human HMGB1 ELISA Kit User's manual download icon Download
